ME微波无极紫外灯

  • 巨源+微波无极紫外灯管+JYM
巨源+微波无极紫外灯管+JYM

巨源+微波无极紫外灯管+JYM

  • 消毒灭菌
  • 液体消毒处理
  • 气体消毒处理
  • 臭气除臭除异味
  • 产品描述:JYM 微波无极紫外灯应用于医院、食品厂、医药长、地下商场、地下车库、无尘室、写字楼、办公楼等的空气灭菌消毒,用于自来水厂、污水处理厂等液体消毒,也适用于各种场合的除异味,气体处理。适用于光催化,光氧化,光降解,UV光解VOCs。
  • 在线订购

巨源+<a href=http://www.vigce.com/index.php/product/index/g/c/id/16.html target='_blank'>微波无极紫外灯</a>管+JYM

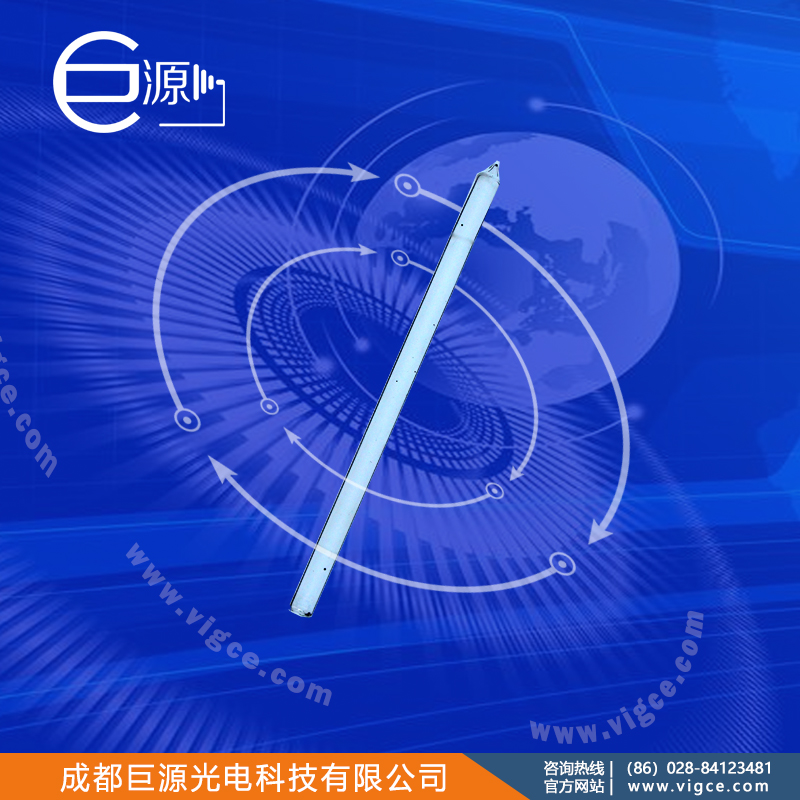

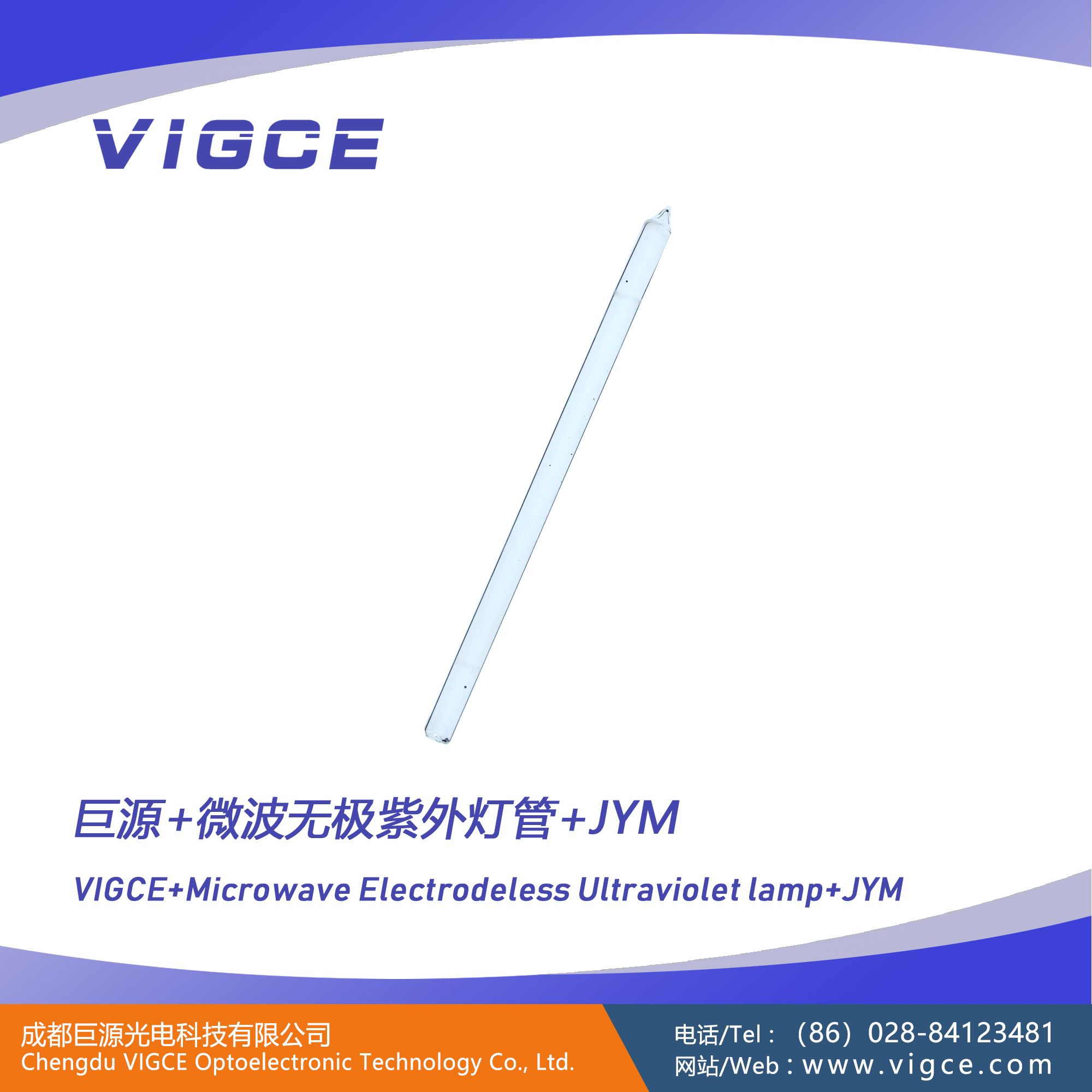

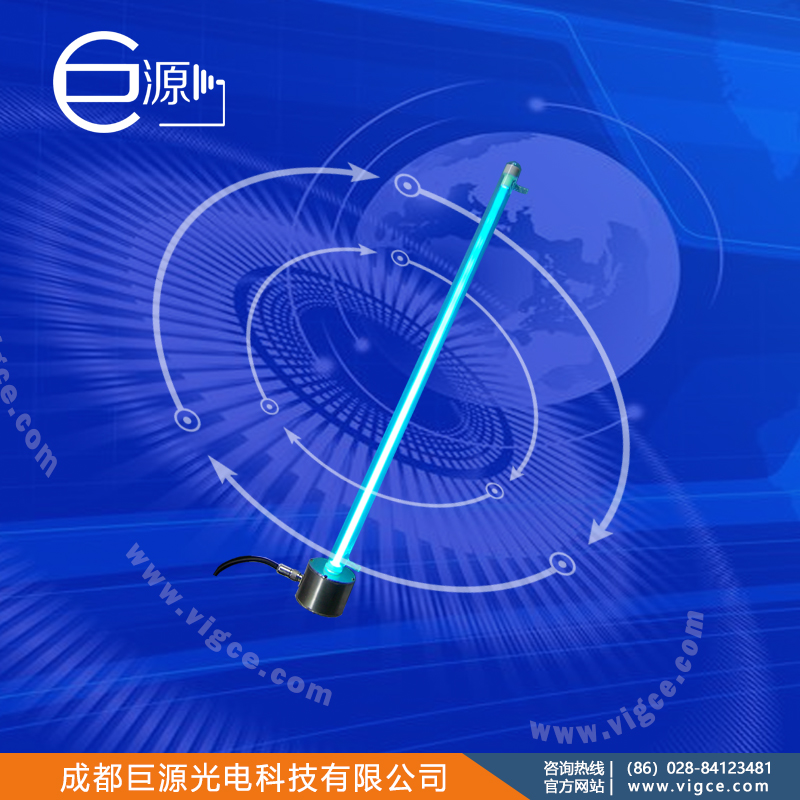

【产品名称】微波无极紫外灯

【产品型号】JYM

【关键字】紫外线灯管,无极灯管,紫外线光源

【产品类别】微波无极紫外灯

【技术原理】微波驱动点亮无极灯管并发出高强度紫外线

【产品特点】

1.灯管寿命超长;

2.紫外输出强度高;

3.以微波低压汞灯为例,其254nm紫外输出功率最高可达1200W/m,是传统低压汞灯(80W/m)的15倍,紫外输出强度可通过调节微波功率大小而改变;

4.紫外输出强度不会逐渐衰减:由于不存在电极损耗问题,紫外输出强度不会随使用时间增加而降低;

5.发光物质选择范围拓宽:原来不能与金属电极相容的发光物质比如硫、碘等均可纳入考虑范围,从而能得到更多新颖的紫外光源,它们可以发出不同波长的紫外光;

6.灯的形状可以不再只是细长的圆管状,根据实际需要可加工成球形、平板形等许多形状,体积大小也可任意改变;

7.可按要求生产同时产生臭氧,以及无臭氧的灯管。

8.灯管长度选择范围大,特殊场合可定制长度。

【应用范围】

微波无极紫外灯的应用广泛,广泛适用于医院、食品厂、医药厂\地下商场、地下车库、无尘室、写字楼、医院、办公楼等的空气灭菌消毒,也适用于自来水厂、污水处理厂等的液体消毒,同样也适用于垃圾堆场、粪便中转站、污水处理厂、香料厂、皮革厂,公共厕所、面包房的异味气体处理。

【综合介绍】

JYM 微波无极紫外灯应用于医院、食品厂、医药长、地下商场、地下车库、无尘室、写字楼、办公楼等的空气灭菌消毒,用于自来水厂、污水处理厂等液体消毒,也适用于各种场合的除异味,气体处理。适用于光催化,光氧化,光降解,UV光解VOCs。

【使用说明】

【产品照片】

【视频资料】

【同系产品】

【规格参数】

灯管长度

灯管直径

加载功率

253.7nm功率

臭氧产生量

富余微波功率

300mm

17mm

>400W

145W

11.21g

<200W

400mm

160W

13.65g

<180W

600mm

180W

13.65g

<140W

800mm

220W

26g

<80W

1200mm

280W

32.15g

<60W

1500mm

300W

39.12g

<10W

【视频资料】

【同系产品】

【规格参数】300mm-1500mm


巨源+<a href=http://www.vigce.com/index.php/product/index/g/c/id/16.html target='_blank'>微波无极紫外灯</a>管+JYM

"Product name" microwave non polar ultraviolet lamp
[product model] JYM
[Keywords] ultraviolet lamp tube, non pole lamp tube, ultraviolet light source
Microwave non polar ultraviolet lamp
"Technology principle] microwave drive light tube and high intensity ultraviolet light
[product characteristics]
1. the lamp life is too long.
2. the UV output intensity is high.
3., taking the microwave low pressure mercury lamp as an example, the output power of 254nm is up to 1200W/m, which is 15 times the traditional low pressure mercury lamp (80W/m), and the output intensity of ultraviolet can be changed by adjusting the size of microwave power.
4. the UV output strength will not gradually decay: because there is no electrode loss, the UV output strength will not decrease with the increase of use time.
5., the choice range of luminescent substances is widened: the luminescent substances which are not compatible with metal electrodes can be taken into consideration, so that more new UV light sources can be obtained, and they can emit different wavelengths of ultraviolet light.
The shape of the 6. lamp can no longer be a slender round tube. According to the actual needs, it can be machined into many shapes such as spherical and flat shape, and the volume size can also be changed arbitrarily.
7. can produce ozone at the same time as required, and no ozone lamp.
8. the length of the tube length is large, and the length is customizable in special occasions.
[application range]
The application of microwave electrodeless UV lamp, widely used in air sterilization in hospitals, food factory, pharmaceutical factory, underground shopping malls, underground garage, clean room, office buildings, hospitals, office buildings, disinfection liquid is also applicable to tap water plant, sewage treatment plant, also applies to the junk yard, waste transfer stations, sewage treatment plants, spices factory, leather factory, odor gas public toilet, bakery processing.
[comprehensive introduction]
JYM microwave electrodeless UV lamp is used in air sterilization in hospitals, food factories, pharmaceutical, underground shopping malls, underground garage, clean room, office buildings, etc., for tap water plant, sewage treatment plant odor disinfection liquid, also suitable for various occasions, gas processing. It is suitable for photocatalysis, photooxidation, photodegradation, and UV photolysis of VOCs.
[instructions]
[product photo]
[video data]
[homologous products]
[specification parameter]
